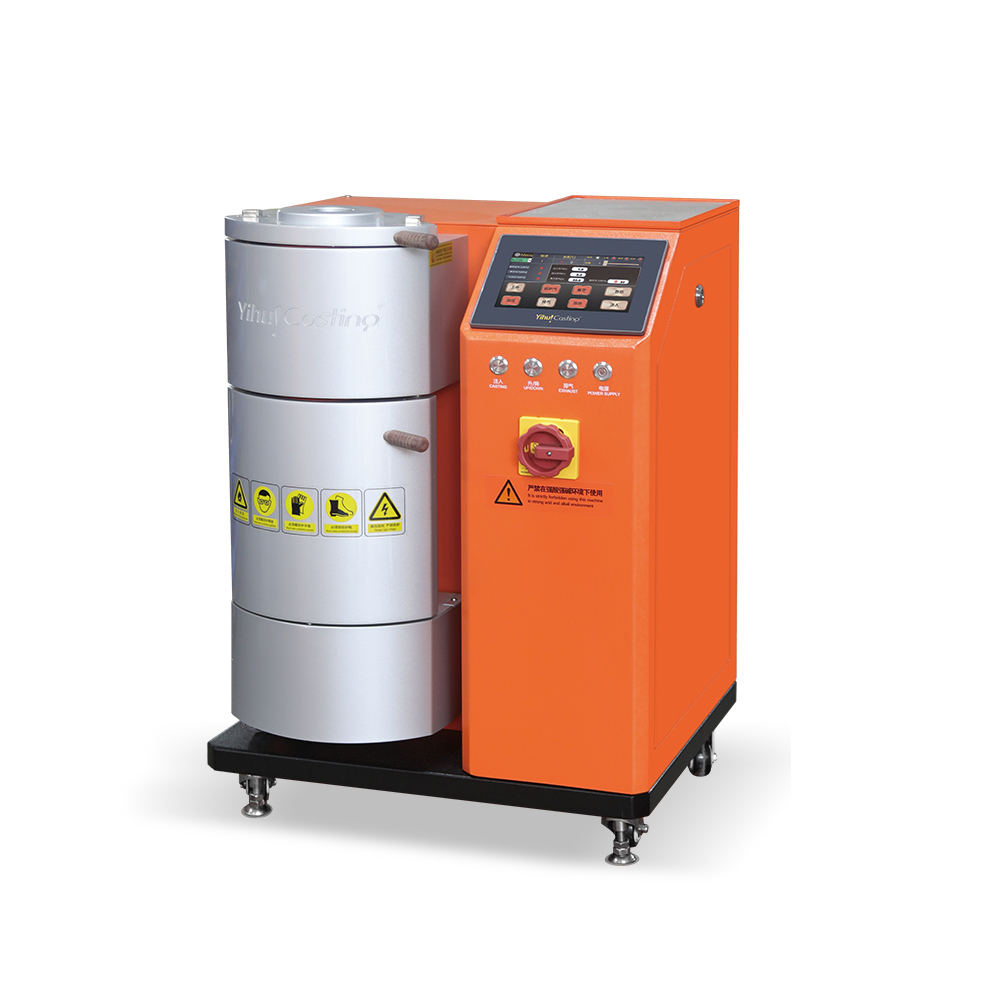

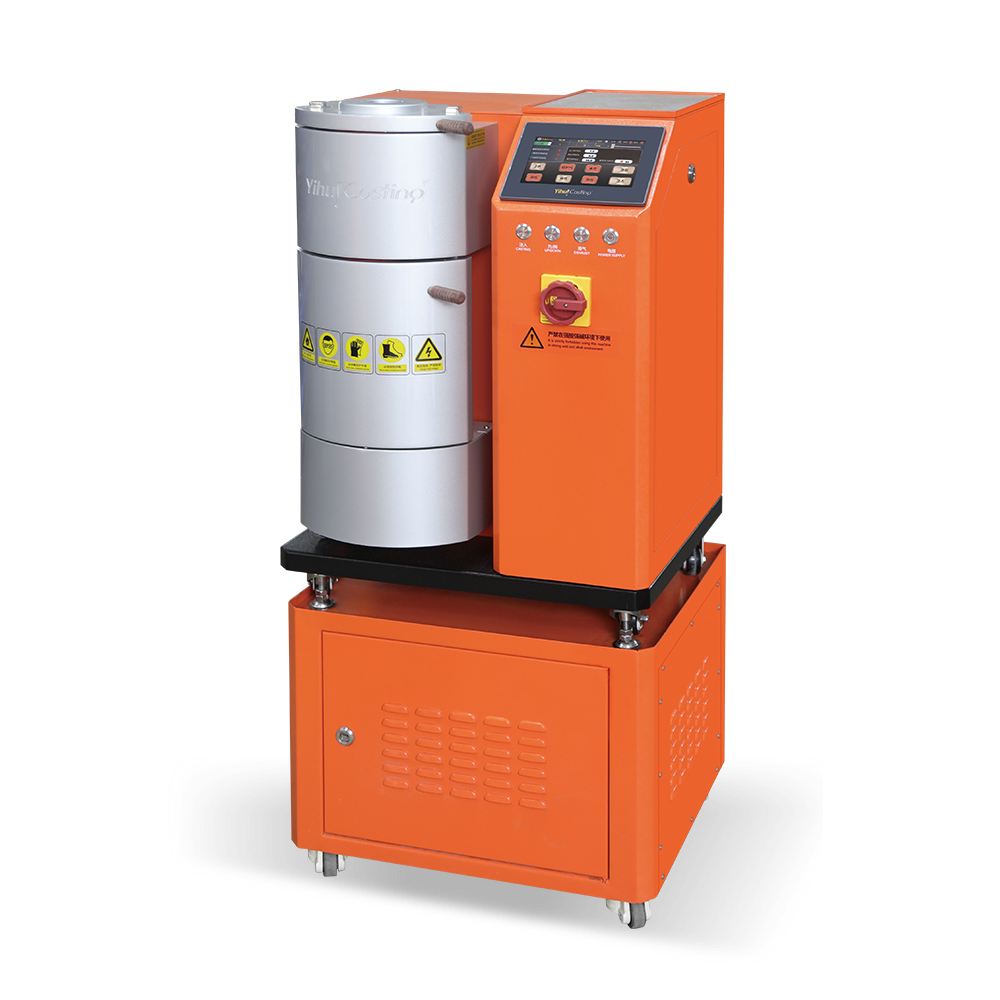

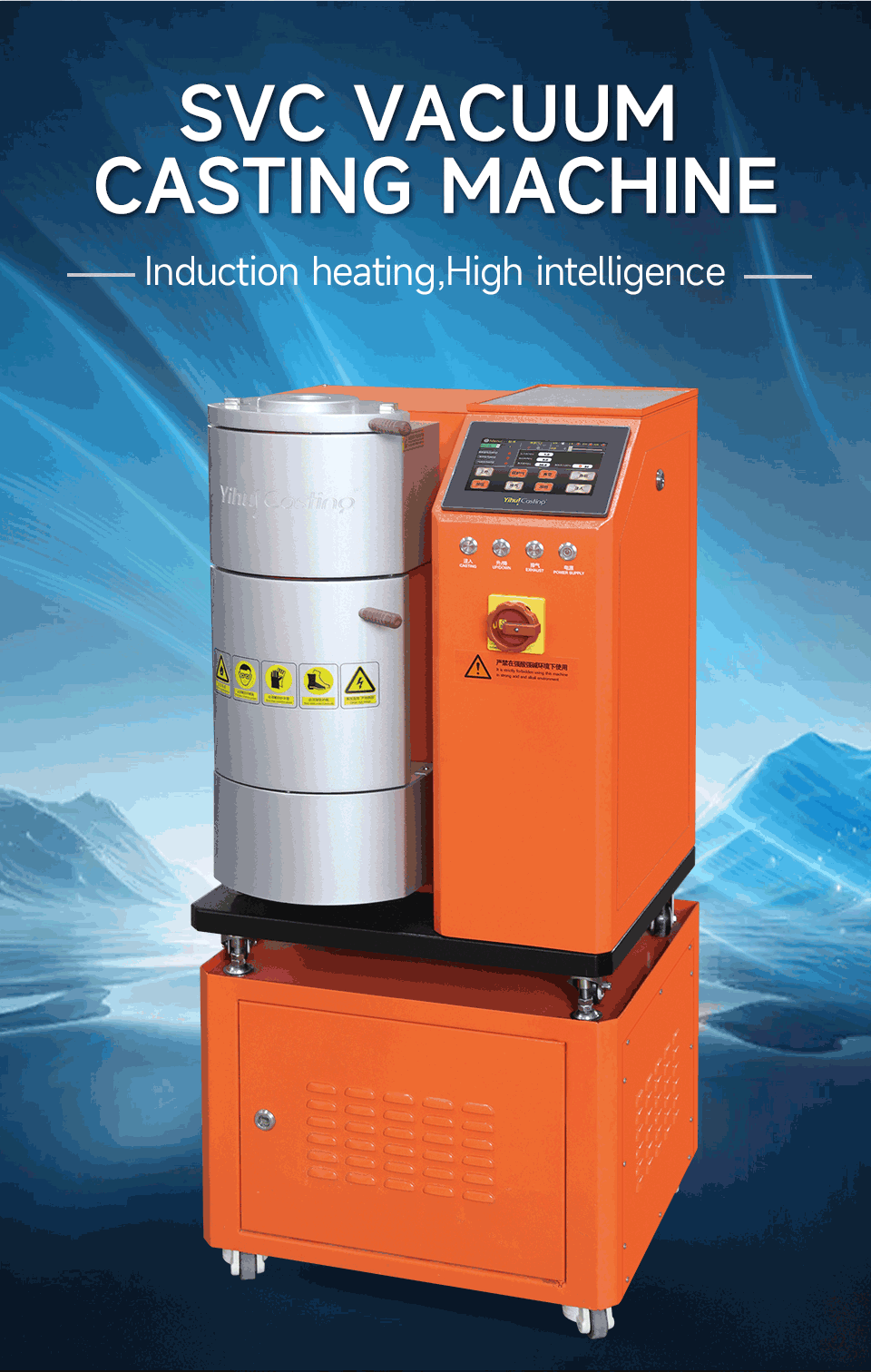

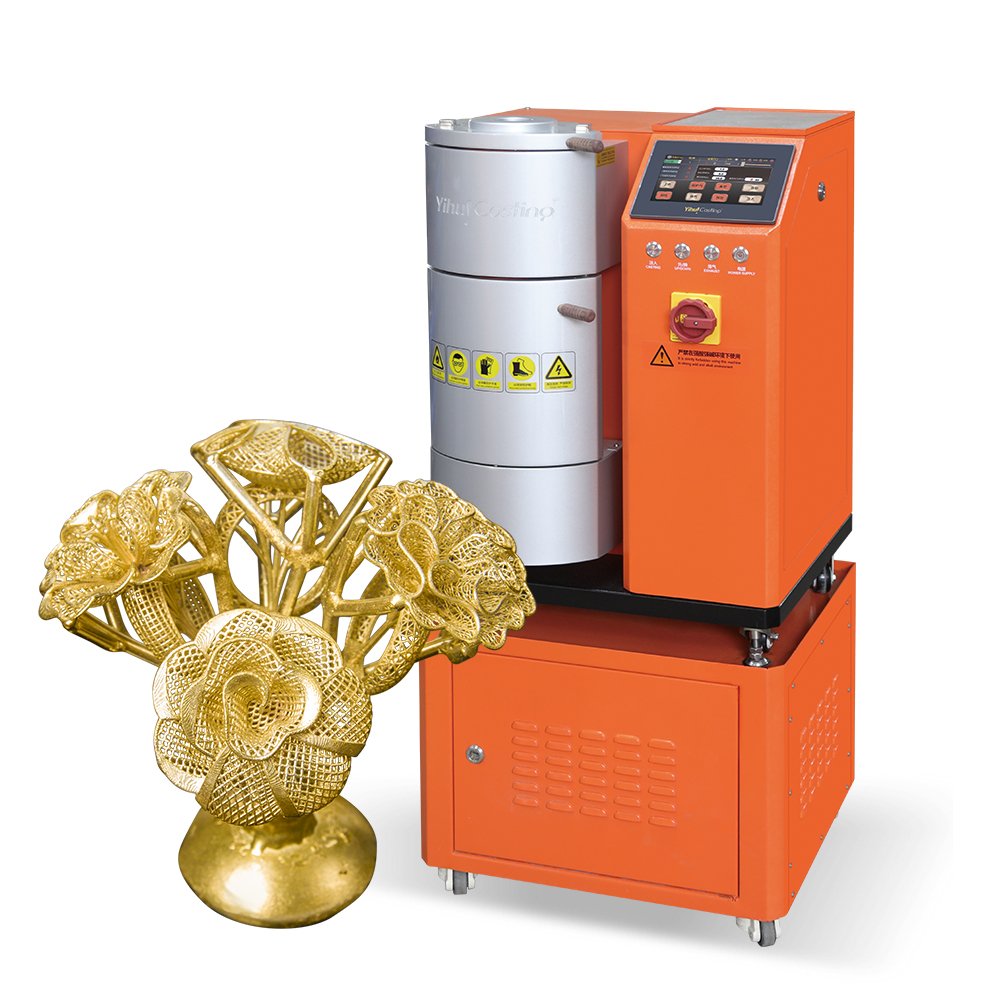

SVC Vacuum Casting Machine for Jewelry Making

    Introducing the SVC Vacuum Pressure Casting Machine, an innovative tool designed specifically for small-scale jewelry production environments such as DIY studios, goldsmiths, and hobbyists.  With its miniature footprint and fully automated operation, it's the perfect companion for optimizing space and streamlining your crafting process.

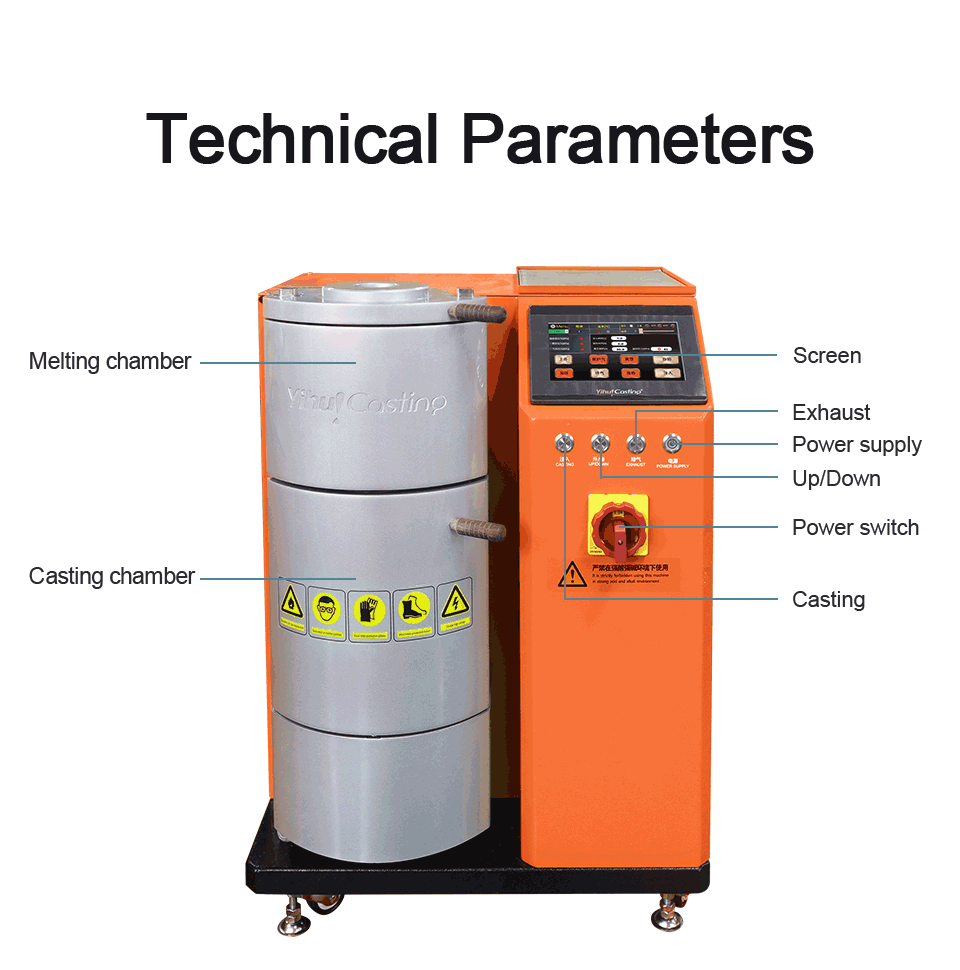

Product Details




ModelZ.M.CM.SVC
Power supply50/60HZ
Power output4KW
Suitable metalGold,  Silver,  Copper
Melting capacity1KG
Temp. range0~1300°C
Max pressure0.2Mpa
Vacuum settingmatch the vacuum pump more than 8L
Type of coolingwater-cooled
Casting methodVacuum pressure casting
Protection gasArgon gad or Nitrogen oxides
Machine dimension680×540×480mm
Net weight95KG



Key Features:

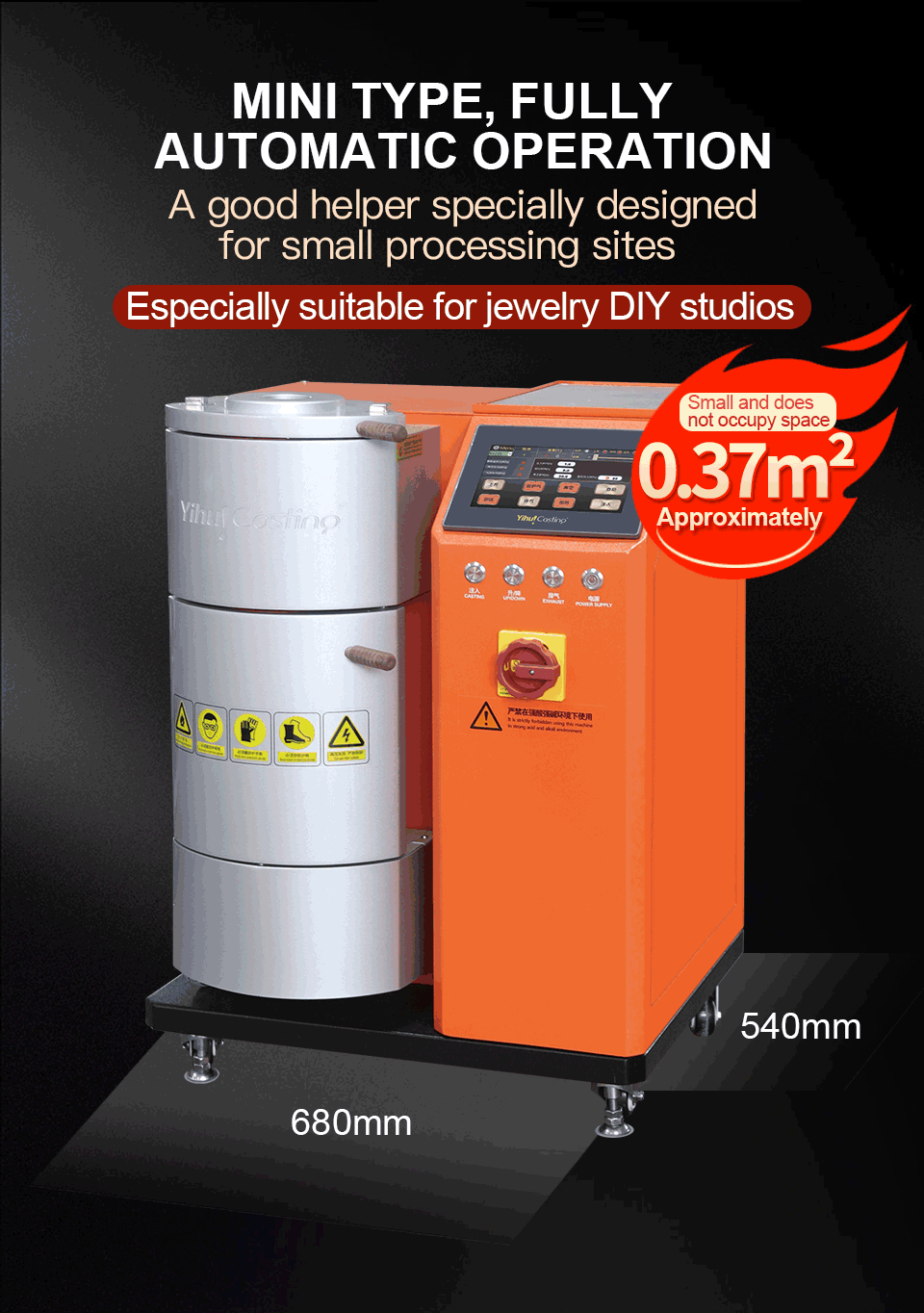

Miniature Design: Occupies minimal space, ideal for tight workspaces in jewelry studios or workshops.

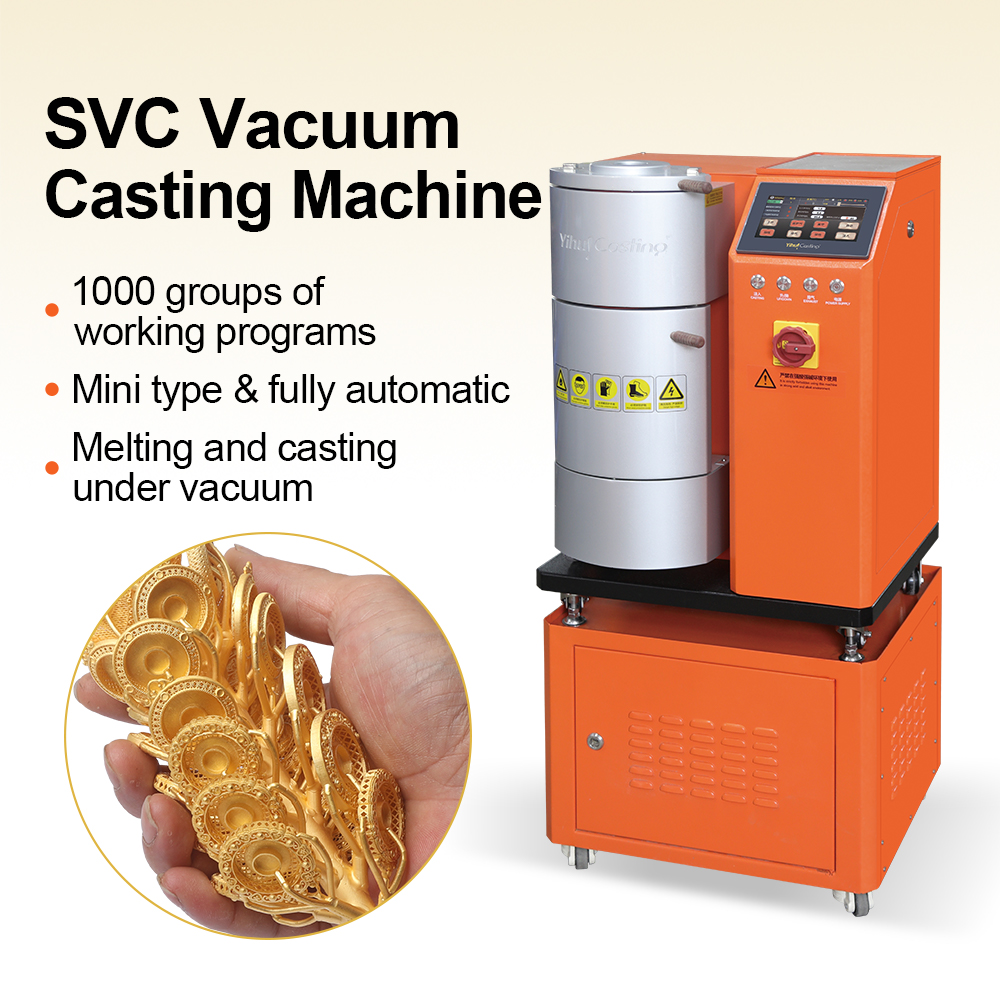

Fully Automatic Operation: Ensures efficiency and convenience for jewelry makers, simplifying casting tasks.

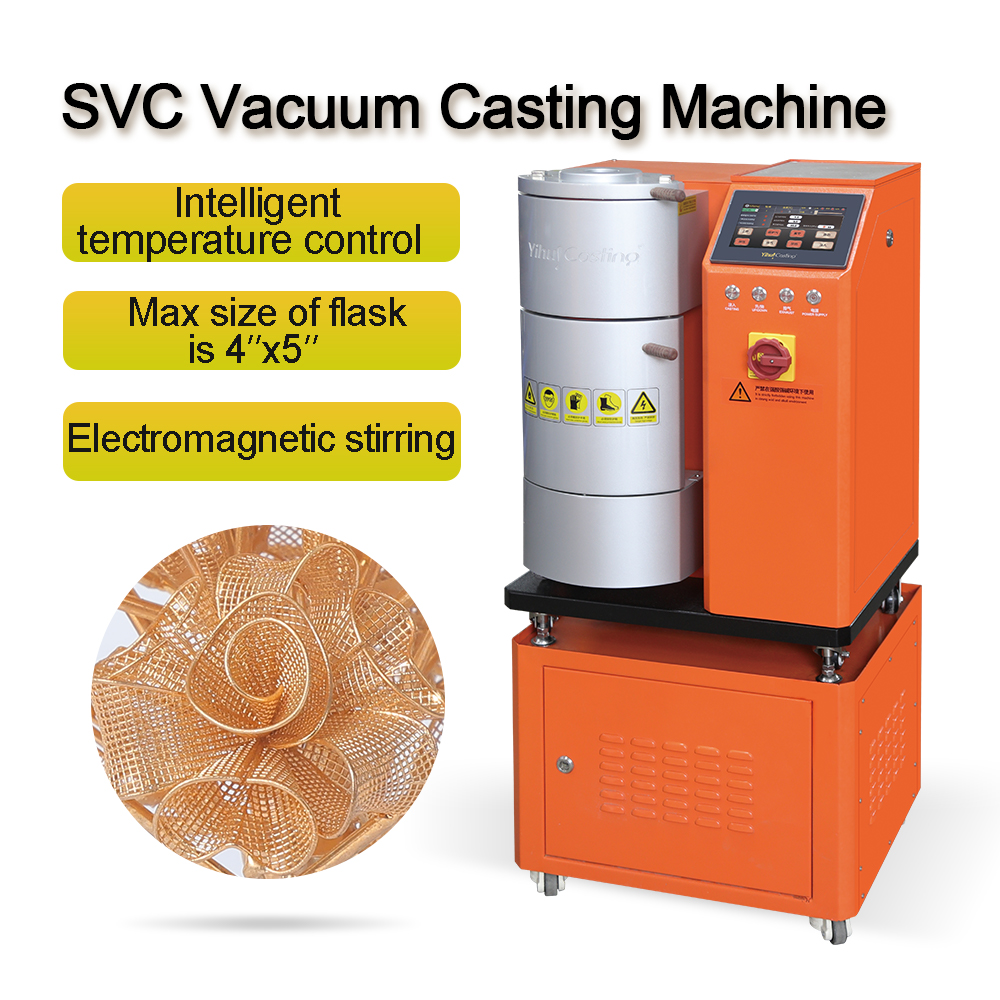

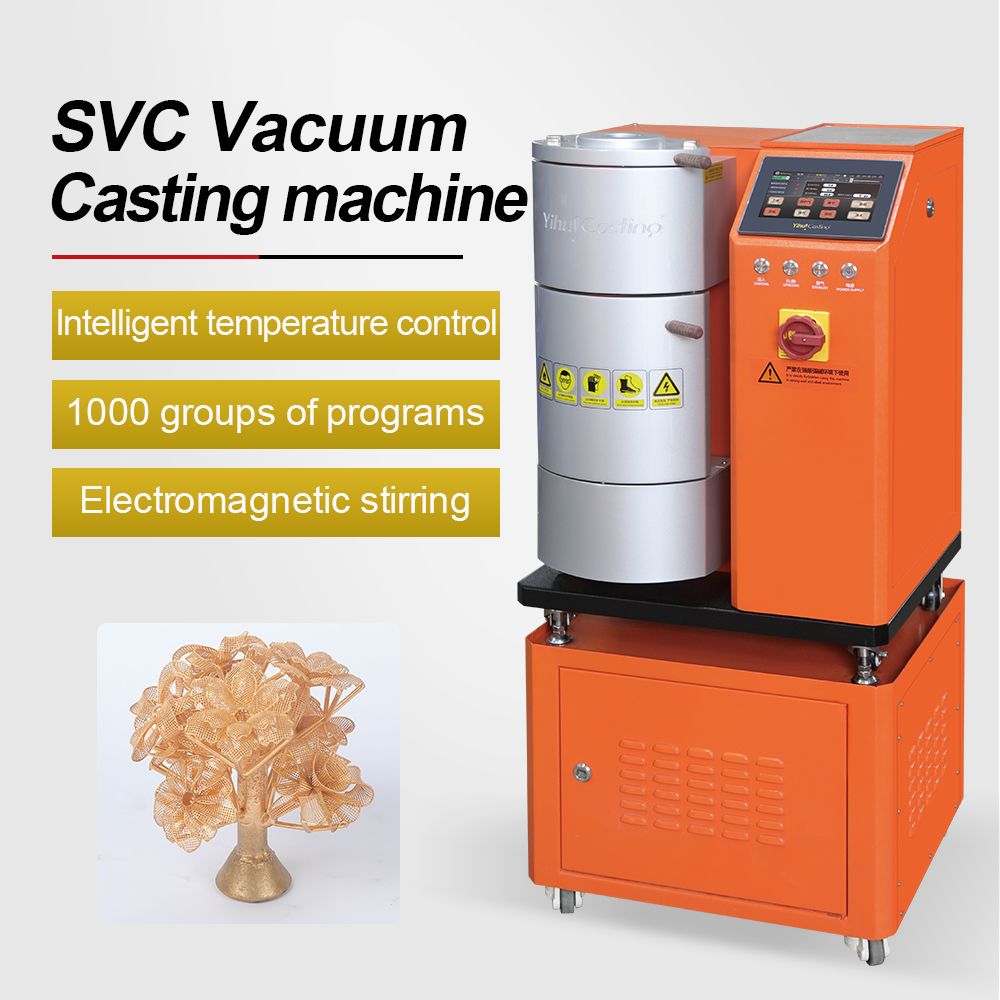

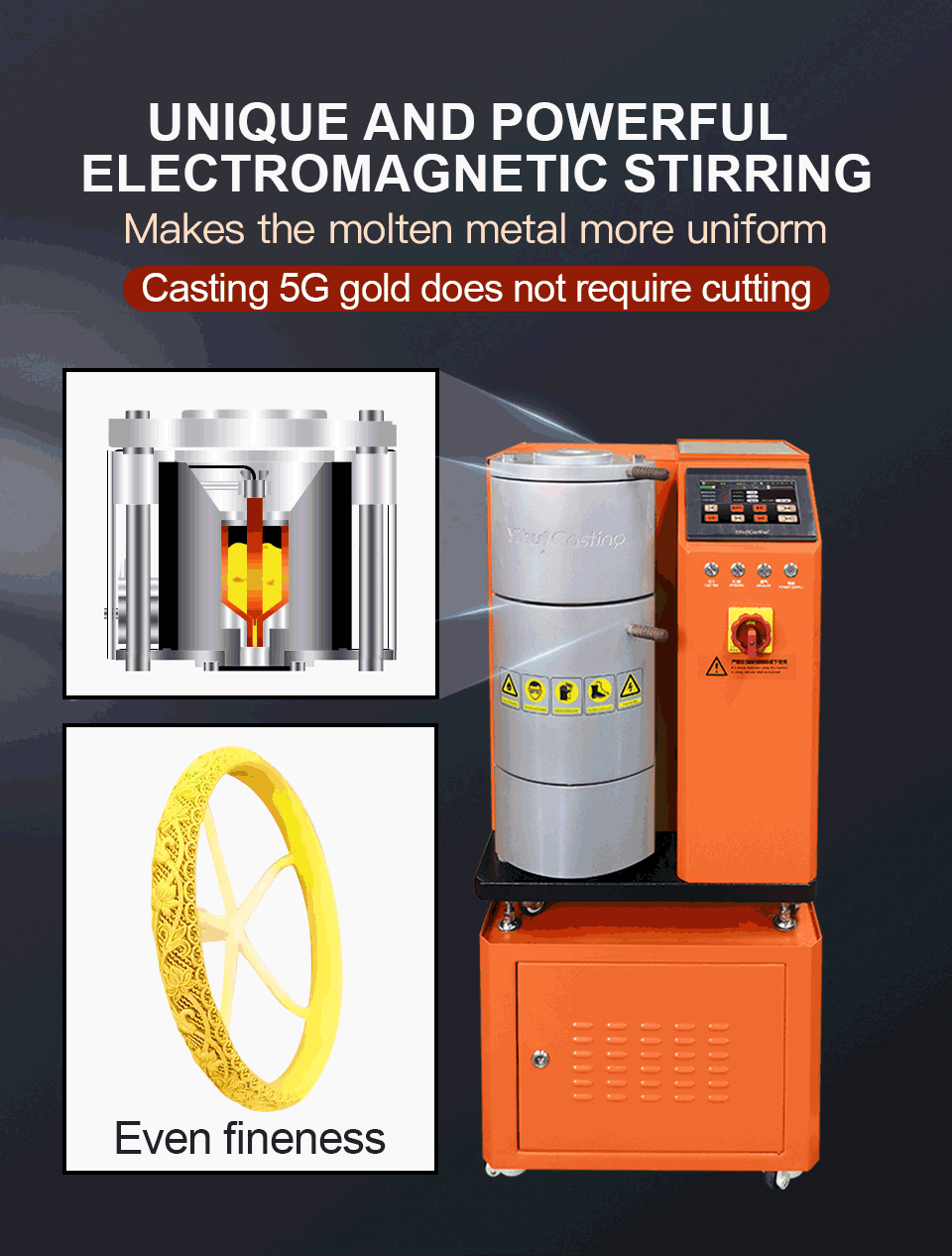

Electromagnetic Stirring: Enhances metal alloy uniformity, delivering flawless castings every time.

Intelligent Induction Heating: Provides precise temperature control, ensuring optimal melting conditions.

Safe & Secure: Features a transparent viewport for monitoring the casting process, along with a pneumatic self-locking system and safety control valves for maximum operator safety.

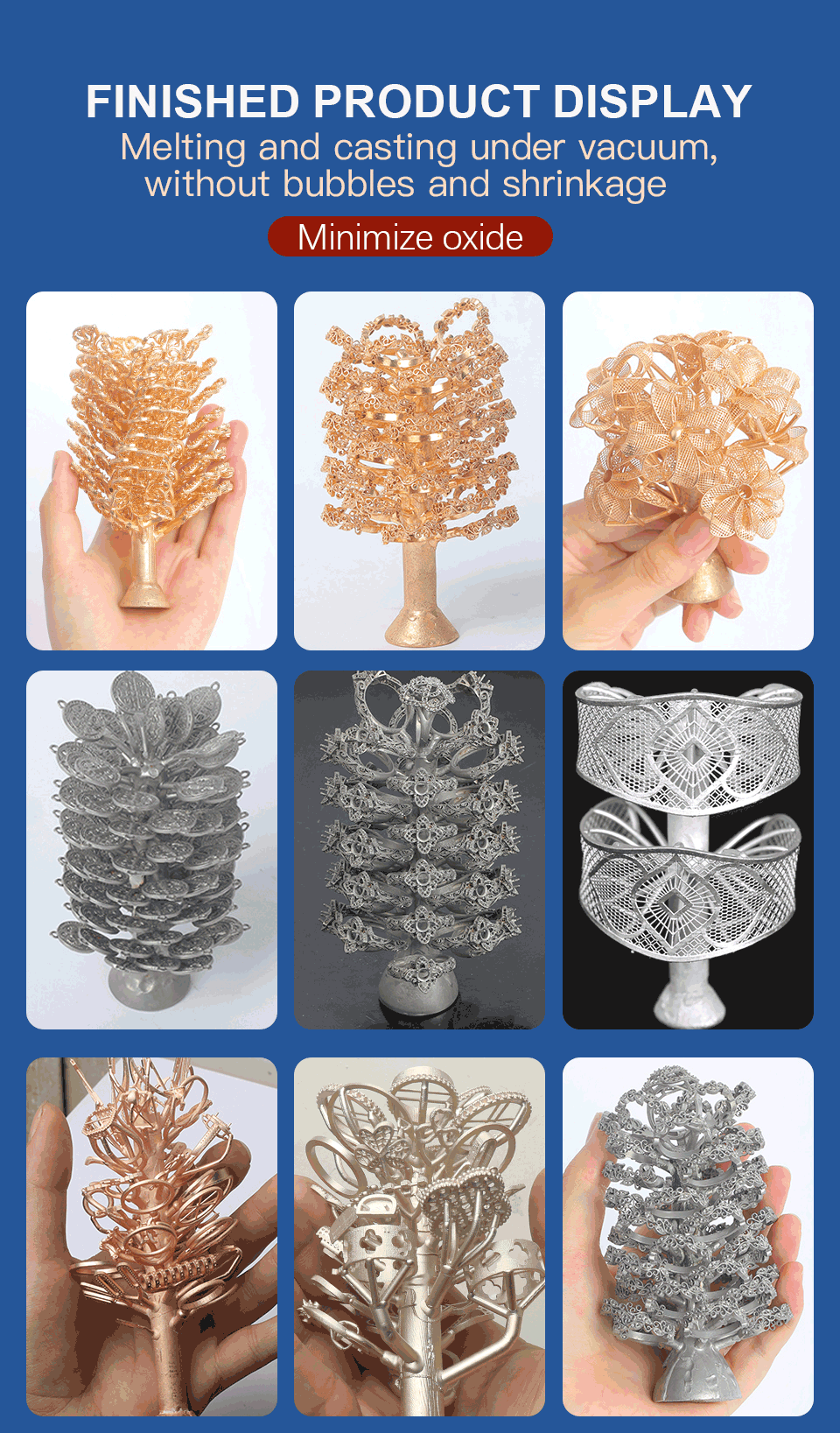

Vacuum Casting Technology: Minimizes oxidation and ensures a clean, bubble-free casting environment.

Interchangeable Casting Cups: Offers flexibility with multiple casting cup sizes to accommodate various jewelry designs.

Advanced Alarm System: Monitors for any abnormal conditions and automatically shuts down to protect the machine's internal systems.

Specialized Casting Chamber: Equipped with a dedicated vacuum pump to evacuate even the smallest air bubbles.

Robust Pressure Capabilities: Rated for a maximum pressure of 0.6MPa (normal operation at 0.2MPa) and a vacuum pressure of -0.1MPa, ensuring reliable casting performance.

Maximum Casting Capacity: Supports steel casting up to 4x5 inches, catering to a wide range of jewelry projects.
