1.Easy to operate: the simple and clear control panel in the chiller, under the installation of internal configuration components,repair and maintenance are very convenient and simple.
2. Complete styles: there are three types of chiller: normal temperature chiller, low temperature chiller and ultra-low temperature chiller. It is very convenient for single machine temperature control in various industries.
3.Long service life: evaporator and condenser design is very reasonable, and placed above the compressor, in the whole operation process,the vast majority of lubrication is always stopped and will stay in the compressor, which can effectively ensure the good lubrication of the compressor.
4. Stable operation: it adopts the world famous brand hermetic compressor, which not only has the advantages of high efficiency, low noise and small vibration, but also has multiple protection devices, which can effectively save energy, and can adopt environmental protection refrigerant compressor according to customer requirements.
5. Electronic circuit for energy automatic regulation: "the first is to effectively reduce the grid start-up load, the second is when the user's load is lower than the total load by a certain amount, the unit will automatically reduce the number of operating units, at the same time, the cooingwo is will be cut off, and finally effectively save electric energy, which can replace other low-frequency chillers to a certain extent.
6. Strong refrigeration: strong adaptability. Water cooled condenser, evaporator using high-quality material as heat exchange surface, and combined with a number of patent technology refined, so that the condenser can be fully liquefied, evaporator can give up enough gasification, save cooling power, enhance the refrigeration capacity, even if this series of machines can work normally under bad conditions.
7. Water saving and power saving: with the chiller becoming the vanguard of the refrigeration industry, energy saving will become a topic of conversation among customers. Therefore, in order to better innovate and save energy, our company improves the previous energy-saving scheme in the design and production. It is convenient to use high-quality condenser and evaporator, and add multi-loop design. More than two compressors adopt one compressor with one circuit, electronic temperature Control regulation, set up energy saving water tank.
Product Basic Information
Product Name: Chiller
Main Keywords: Easy to operate, Complete styles, Long service life, Stable operation, Energy automatic regulation, Strong refrigeration, Water
saving and power saving
Attribute Keywords: Simple control panel, Internal configuration components, Normal temperature, Low temperature, Ultra-low temperature,
High-efficiency compressor, Multiple protection devices, Environmental protection refrigerant, Electronic circuit, Water cooled condenser, High
-quality evaporator, Multi-loop design, Energy saving water tank
Product Features & Advantages
Easy to Operate: Features a simple and clear control panel, facilitating convenient repair and maintenance.
Complete Styles: Offers three types of chillers (normal, low, and ultra-low temperature) suitable for various industries' temperature control
needs.
Long Service Life: Rational evaporator and condenser design ensures good compressor lubrication, prolonging product lifespan.
Stable Operation: Equipped with world-renowned hermetic compressors, featuring high efficiency, low noise, small vibration, and multiple
protection devices for energy savings.
Energy Automatic Regulation: Electronic circuit reduces grid start-up load and automatically adjusts operating units based on load, saving
electricity.
Strong Refrigeration: High-quality condenser and evaporator materials, combined with patented technology, ensure efficient cooling and
adaptability to harsh conditions.
Water Saving and Power Saving: Incorporates advanced energy-saving designs, including multi-loop compressor systems and energy-
saving water tanks.
Model: | LS-10 |
| Working voltage: | AC 1P 220V |
| Working frequency: | 50Hz |
| Rated power: | 0.81KW |
| Nominal refrigerating capacity: | 0.81kW |
| Compressor power: | 0.32KW |
| Water pump power: | 100W |
| Maximum lift: | 25M |
Maximum flow: | 16L/min |
| Accurate temperature control: | +0.1°C |
| Refregerant: | R-134a |
| Restrictor: | Capillary |
Water tank capacity: | 6L |
| Type of evaporator: | Coil tube water tank |

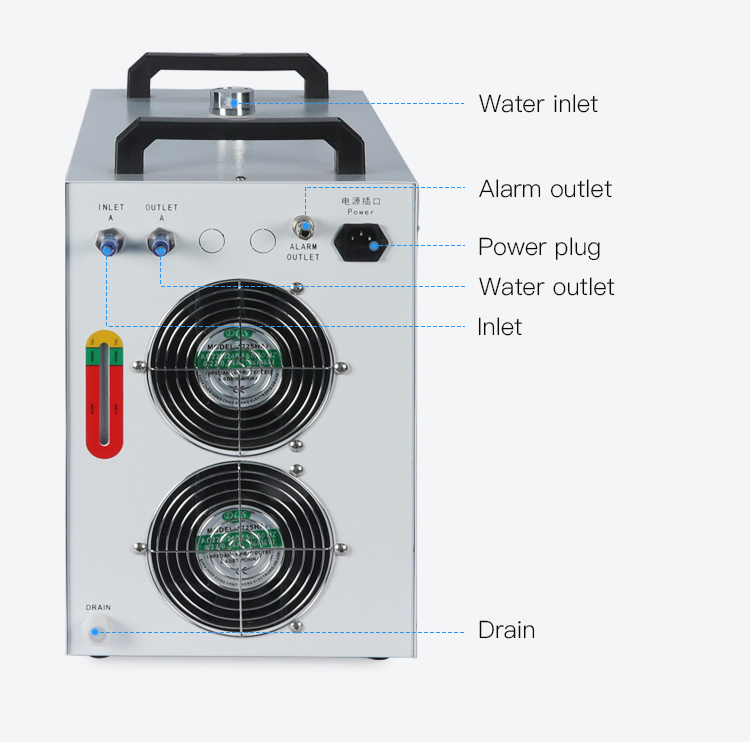

Water inlet and outlet: | Rp 1/2‘’ |
| Net weight : | 23kgs |
| Gross weight : | 25kgs |
Machine size: | 58*29*47cm |
| Package size: | 70*43*58cm |
Target Audience
Industries requiring temperature control solutions, including but not limited to food processing, pharmaceutical, chemical, and manufacturing sectors.
Businesses and organizations seeking energy-efficient and cost-effective chilling systems.
Maintenance and facility managers responsible for ensuring reliable and efficient operation of chilling equipment.
